Safety Through Innovation

The World's Most Trusted Traffic Safety Solution

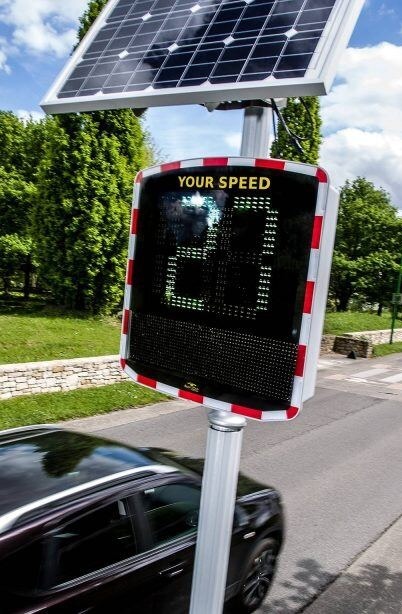

EVOLIS Mobility Radar Speed Sign

The EVOLIS Mobility Radar Speed Sign represents the pinnacle of traffic calming technology, trusted by nearly 20,000 municipalities with over 45,000 units deployed worldwide. This high-performance speed display combines striking visibility, exceptional accuracy, and unmatched durability to effectively reduce speeding in your community.

Key Features

Powerful Visual Impact

  • High-Resolution LED Display: Features 3 rows of high-luminosity LEDs for maximum visibility up to 250 meters

  • Color-Coded Feedback: Displays speeds in green when legal and red when exceeding limits

  • Enhanced Driver Awareness: Provides earlier speed notification with 300-meter detection range

Advanced Traffic Monitoring

  • Bi-Directional Data Collection: Records comprehensive traffic statistics in both directions

  • Detailed Analytics: Captures vehicle counts, speed data, time stamps, and percentiles (V30/V50/V85)

  • Spy Mode: Collects traffic data even when display is inactive for comparative analysis

Superior Construction

  • Weatherproof Housing: One-piece ABS resin construction with full-core anti-UV treatment

  • Impact-Resistant Face: Curved polycarbonate front with anti-reflective coating

  • Lightweight Design: Only 9.2kg (excluding batteries) for single-person installation

Flexible Power Options

  • Solar Powered: Complete autonomy with 100W or 150W solar panel options

  • Public Lighting: Connect to street lighting infrastructure

  • Battery Powered: 1-2 week autonomy with rechargeable battery system

  • Hybrid Mode: Combine solar and electrical power for maximum reliability

Simple Operation & Management

  • On-Device Configuration: Direct speed threshold adjustment on the radar

  • Multiple Connectivity Options: USB, Bluetooth®, and optional 4G connectivity

  • Comprehensive Software: Easy data retrieval, analysis, and export (Excel, CSV, PDF)

  • Remote Management: Optional Connect box for 4G remote access and monitoring

Real-World Performance

"After 60 days of being deployed I am very happy to report that I have not received any complaint from these areas in regard to speeding. I was able to program the signs to display warning messages in alternating colors and could not be happier with the results. In fact, the average speed over a 60-day period was 98% below the posted speed limit." — Mr. Prichard, Hollywood Park, TX

Talk to an expert Brochure
DK_Mobility_green_left

Bi-Directional Data Collection: Records comprehensive traffic statistics in both directions

DK_Mobility_green_front

Color-Coded Feedback: Displays speeds in green when legal and red when exceeding limits

DK_Mobility_green_right

Impact-Resistant Face: Curved polycarbonate front with anti-reflective coating

DK_Mobility_red_left

Weatherproof Housing: One-piece ABS resin construction with full-core anti-UV treatment

DK_Mobility_red_front

Impact-Resistant Face: Curved polycarbonate front with anti-reflective coating

DK_Mobility_red_right

Spy Mode: Collects traffic data even when display is inactive for comparative analysis

DK_Mobility_bang_left

High-Resolution LED Display: Features 3 rows of high-luminosity LEDs for maximum visibility up to 250 meters

DK_Mobility_bang_front

Impact-Resistant Face: Curved polycarbonate front with anti-reflective coating

DK_Mobility_bang_right

Lightweight Design: Only 9.2kg (excluding batteries) for single-person installation

DK_Mobility_happy_left
DK_Mobility_happy_front
DK_Mobility_happy_right
EN-radar-pedago-photo1-1024x614 (1)

Technical Specifications



Display

  • Speed Digits: 3 digits (0-199)

  • Dimensions: 380 x 450 mm

  • LED Color: Green/Amber/Red

  • LED Type: OSRAM C.M.S high-luminosity, ultra-low consumption

  • LED Lifespan: >100,000 hours

  • Light Adaptation: High-precision photosensitive cell

Radar Technology

  • Detection Range: Up to 300 meters

  • Accuracy: Within 1%

  • Detection Angle: 33 degrees

  • Frequency: 24.125 GHz

  • Analysis: Both traffic directions (incoming/outgoing)

Data Collection

  • Statistics: Average and maximum speeds, vehicle counts, time stamps, percentiles

  • Memory: 16 MB, capable of recording up to 5 million vehicles

  • Data Export: Excel, CSV, or PDF formats

Physical Specifications

  • Dimensions: 710 x 770 x 160 mm (W x H x D)

  • Weight: 9.2 kg (excluding batteries)

  • Housing Material: ABS resin, anti-UV, one-piece injection molded body

  • Front Face: Non-reflective polycarbonate with convex shape

  • Protection Rating: IP65

  • Security: Lock and specific key, provision for padlock

Power Options

  • Battery: Lead-acid 12V, 22Ah

  • Solar Panel: 100W or 150W monocrystalline high-output cells

  • Street Lighting: Smart charging management with integrated protection fuse

Compliance

  • Directive RED 2014/53/EU

  • Directive RoHS 2011/65/EU

  • Directive WEEE 2012/19/EU

Why Choose EVOLIS Mobility?

  • Proven Effectiveness: Significant and lasting decrease in speeding

  • Exceptional Durability: Less than 1% return rate under our 2-year warranty

  • Easy Installation: Universal mounting system fits any existing support structure

  • Low Maintenance: Designed for years of reliable operation in all weather conditions

  • Expert Support: Dedicated team provides installation assistance and technical support

Contact us today to discuss how EVOLIS Mobility can enhance road safety in your community.
