LP15 with Vertical Raise/Lower Mechanism

LP15-LHS-80 Arrow Light System

Advanced arrow light system featuring a vertical raise/lower mechanism. The compact 800 x 800 x 32 mm aluminum panel includes 15 high-visibility LED lamps (Ø140 mm, 30 LEDs each) visible from extreme distances. CE EN 12.352 L2H certified with intelligent 5-level light adjustment via photosensor.

Built with heavy-duty aluminum vertical lift mechanism and weighing 38 kg including frame and motor. Operates on 12V with 3.5A average consumption. Features RS485 canbus control with backlit panel. Installation requires only a 4-wire cabin connection. Compatible with additional light bars and external flashers. Includes standard push-button remote control with cable.

Talk to an expert Brochure

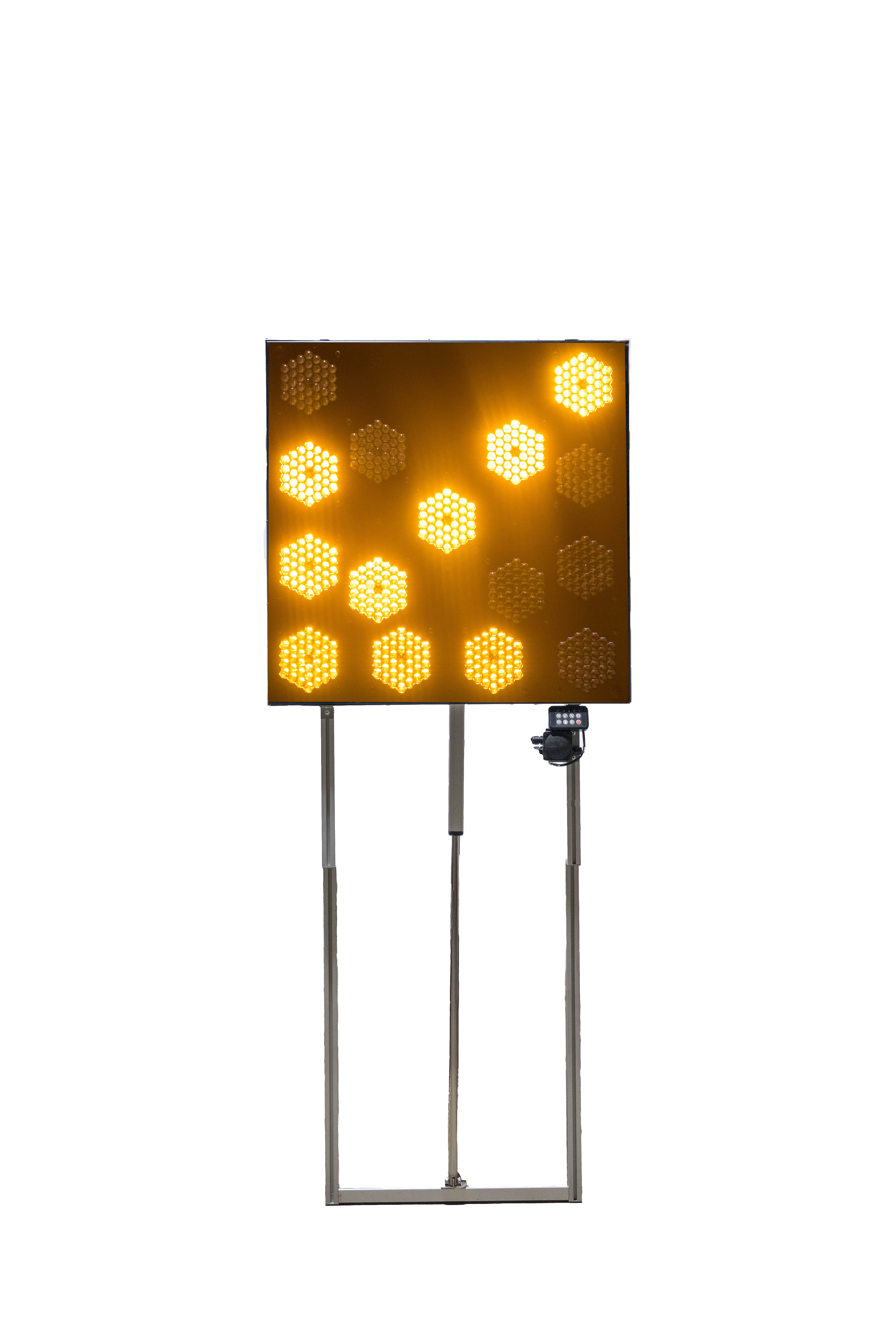

LP15 Schiebe Pfeil links

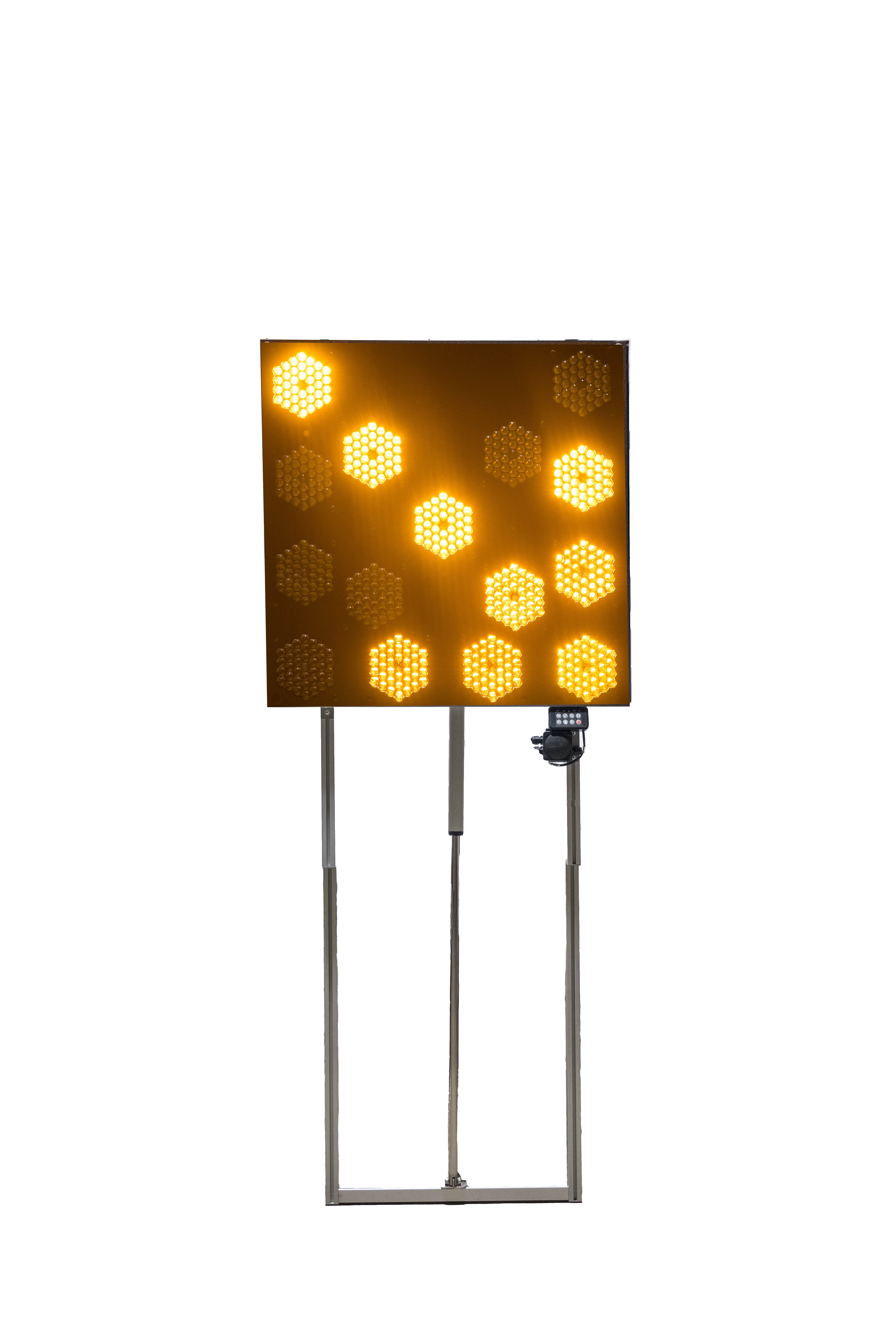

LP15 Schiebe Pfeil rechts

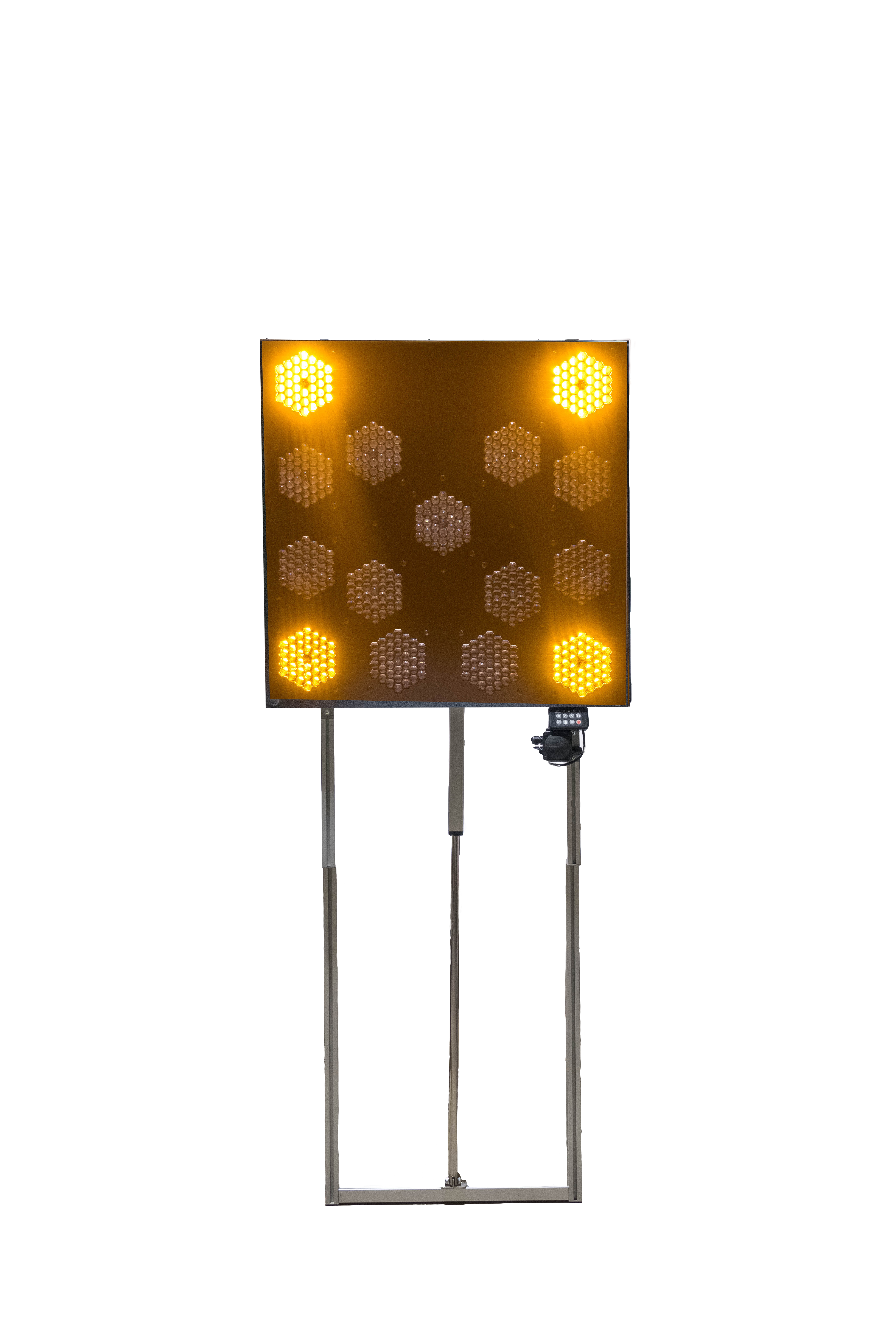

LP15 Schiebe außen

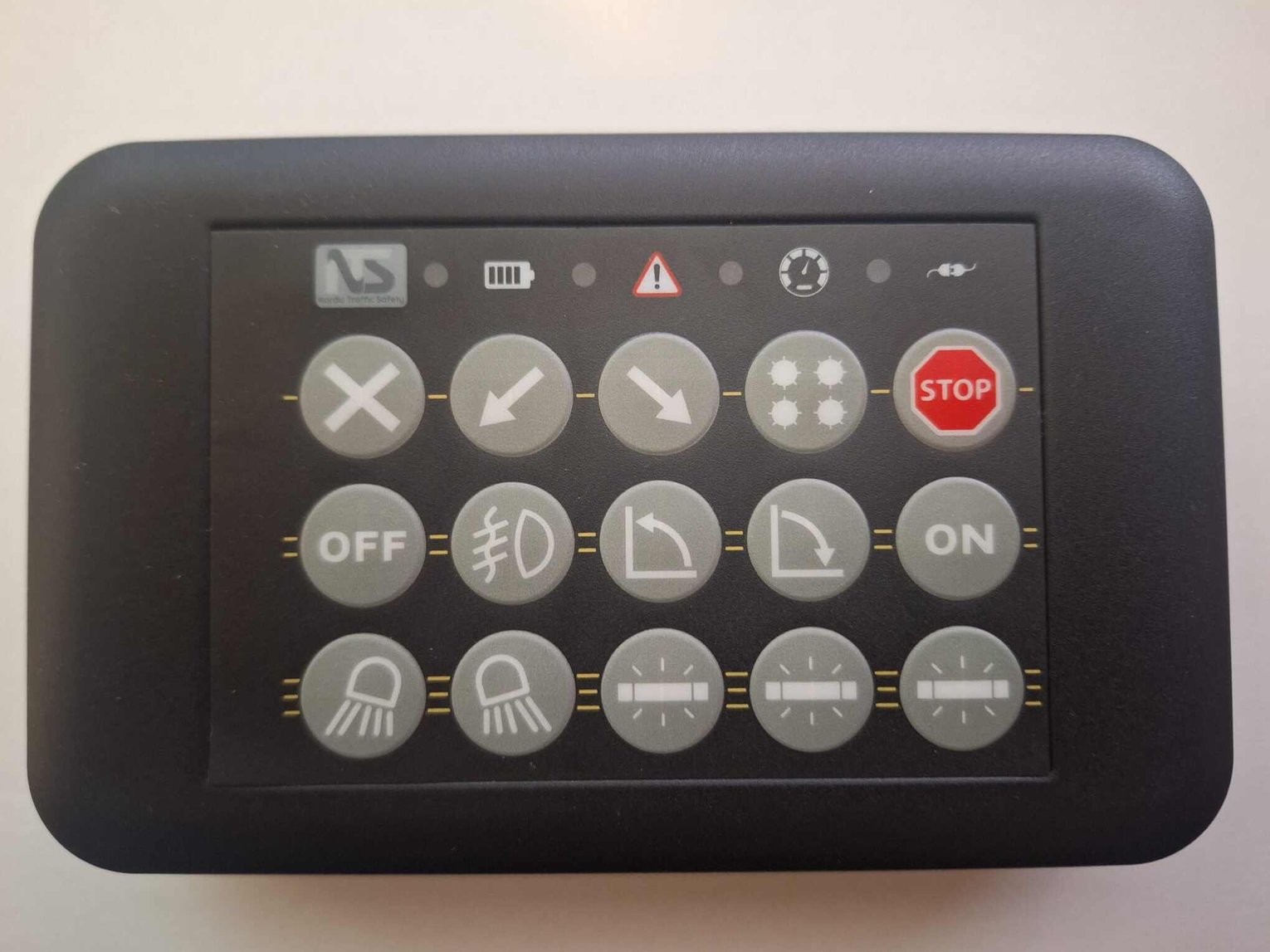

Fjernbetjening_3x5_1
LP15 Schiebe Pfeil links LP15 Schiebe Pfeil rechts LP15 Schiebe außen Fjernbetjening_3x5_1
LP15_anhængertræk

SKU: 2151111813

Slide-Line LP15-80-LHS

Technical Specifications:
  • Weight: 38.0 kg (including frame system and motor)
  • Number of lamps: 15 pcs. Ø140 mm
  • LEDs per lamp: 30 pcs.
  • Material: Aluminum
  • Panel dimensions: 800 x 800 x 32 mm
  • Light class: CE EN 12.352 L2H tested and approved
  • Power: 12V
  • Average consumption: 3.5A
  • Control system: RS485 canbus
  • Control unit: Backlit control panel with control functions
  • Photo sensor: Automatic light reduction in min. 5 levels (meets Road Directorate requirements)
  • Remote control: Push button with cable (standard)
  • Features: Vertical raise/lower mechanism, compatible with light bars and external flashers
  • Installation: 4-wire cable connection to cabin (+ / - and 2 control wires)
