LK9 with vertical raise/lower mechanism

LK9-LHS-106

LK9-LHS-106 Light System

Advanced traffic light system featuring a vertical raise/lower mechanism in heavy-duty aluminum profile. The 1060 x 1060 x 32 mm aluminum panel includes 9 high-visibility LED lamps (Ø200 mm, 60 LEDs each) visible from extreme distances. CE EN 12.352 L8H certified with intelligent 5-level light adjustment via photosensor.

Complete with RS485 canbus control system and backlit control panel. Weighs 31 kg including frame and motor. Operates on 12V with 3.5A average consumption. Installation requires only a 4-wire cabin connection. Compatible with additional light bars and external flashers. Includes standard push-button remote control with cable.

Talk to an expert

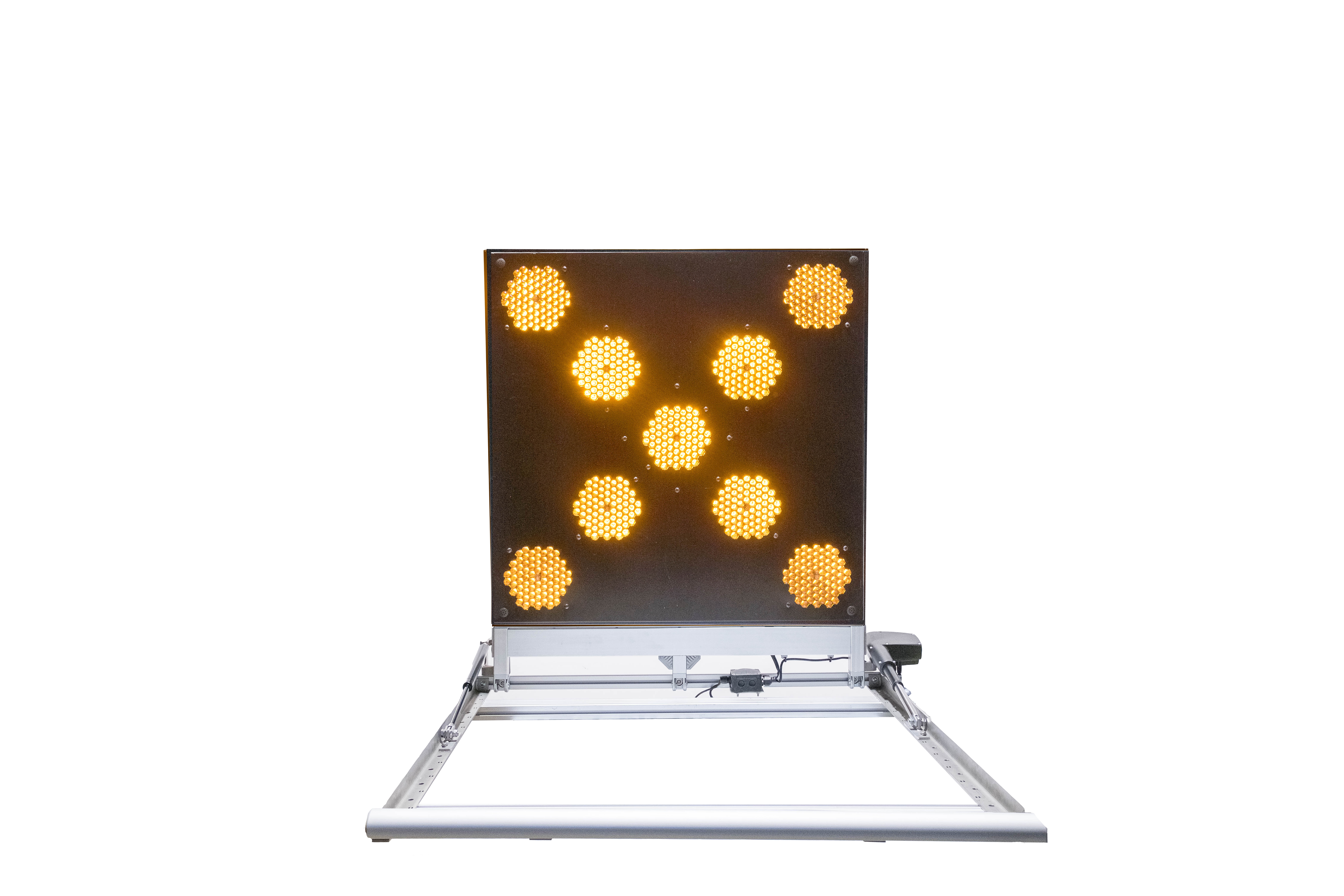

LK9 voll

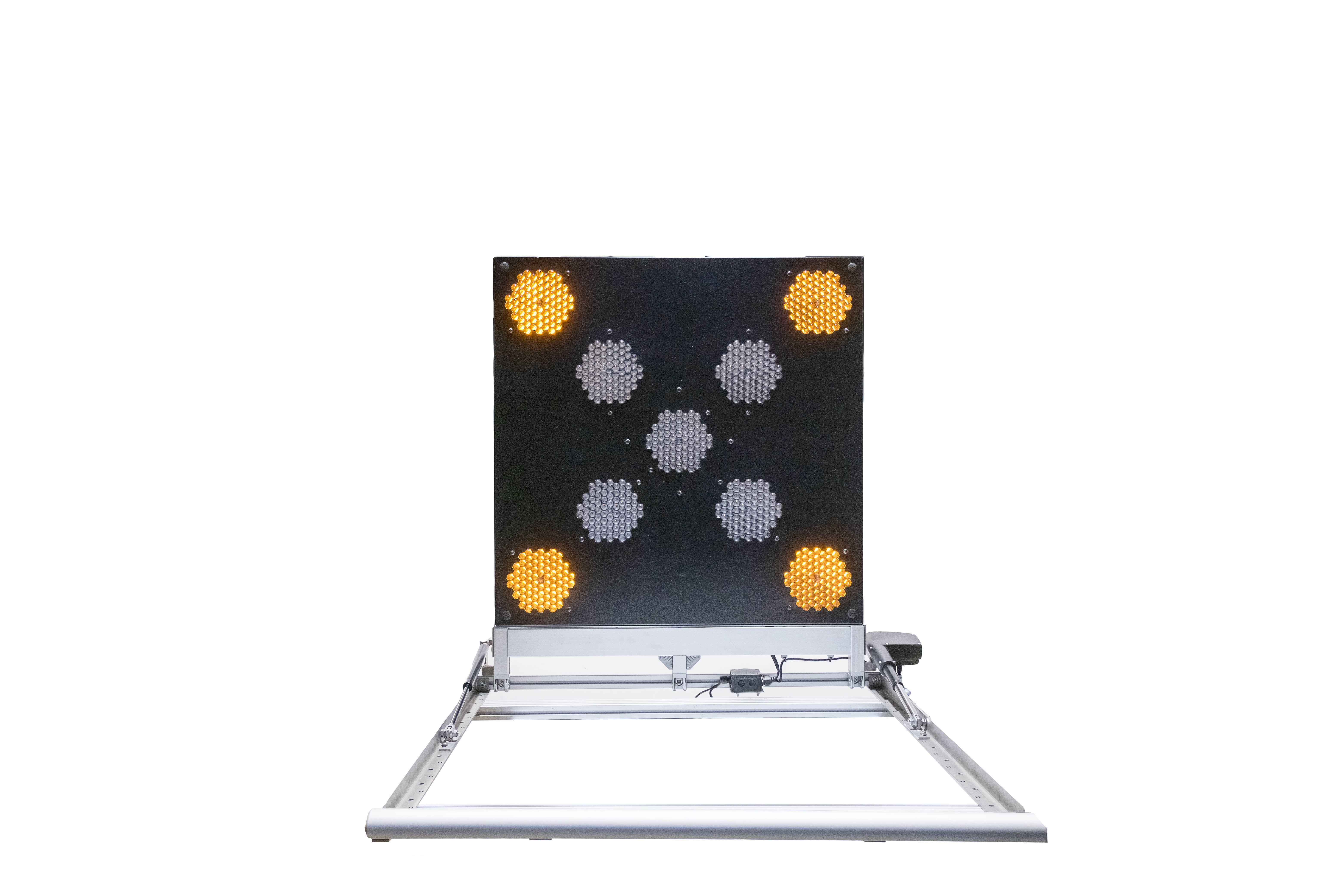

LK9 außen
NY Fjernbetjening LK9
LK9 voll LK9 außen NY Fjernbetjening LK9

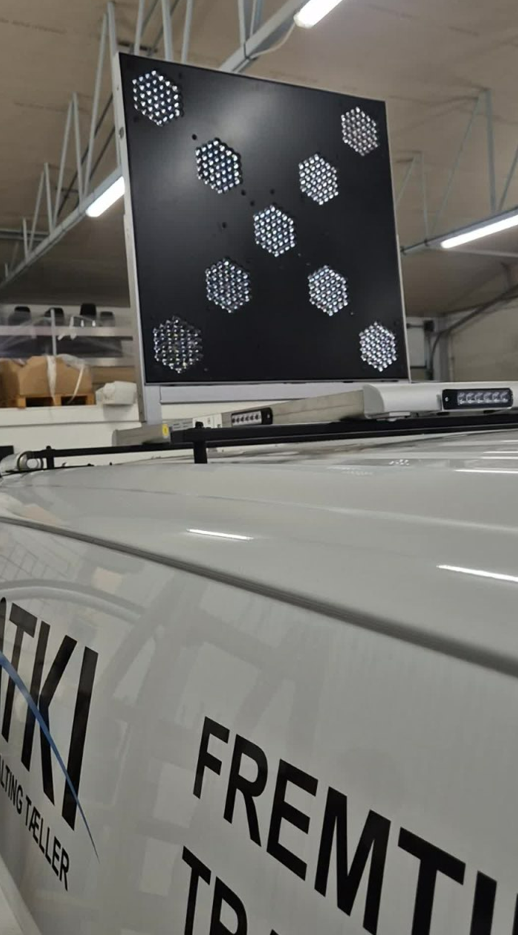

Atki_LK9

SKU: 2091112823

LK9-LHS-106

Technical Specifications:

  • Weight: 31 kg (including frame system and motor)
  • Number of lamps: 9 pcs. Ø200 mm
  • LEDs per lamp: 60 pcs.
  • Material: Aluminum
  • Panel dimensions: 1060 x 1060 x 32 mm
  • Light class: CE EN 12.352 L8H tested and approved
  • Power: 12V
  • Average consumption: 3.5A
  • Control system: RS485 canbus
  • Control unit: Backlit control panel with control functions
  • Photosensor: Automatic light reduction in min. 5 levels (meets Road Directorate requirements)
  • Remote control: Push button with cable (standard)
  • Features: Vertical raise/lower mechanism, compatible with light bars and external flashers
  • Installation: 4-wire cable connection to cabin (+ / - and 2 control wires)
