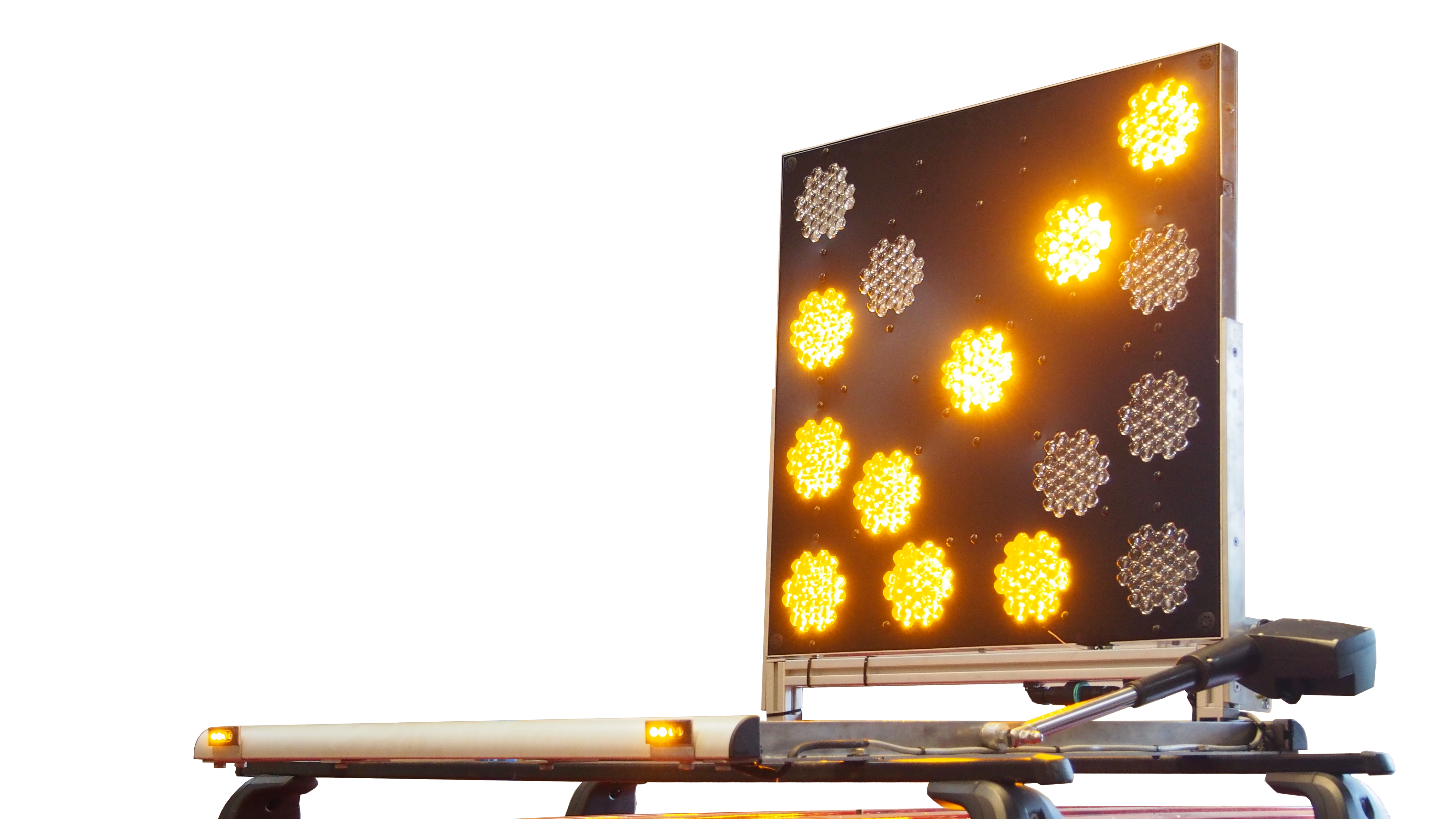

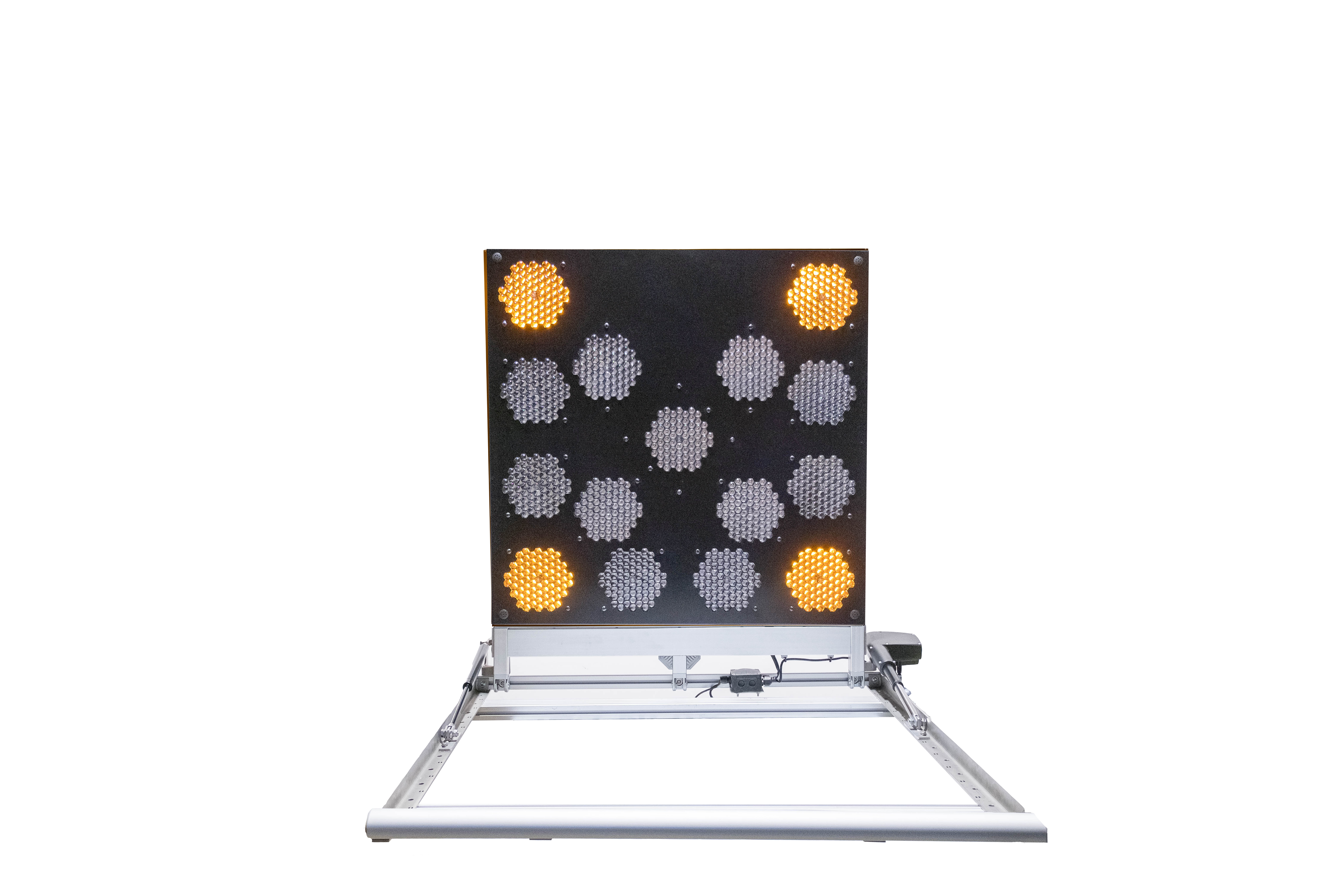

LP15-106 HHS Arrow Light System with Raise/Lower Mechanism

Slim-Line LP 15-106 HHS

Premium arrow light system featuring a lift/lower mechanism with minimal wind resistance. The sleek 1060 x 1060 x 35 mm aluminum panel incorporates 15 high-performance LED lamps (Ø200 mm, 30 LEDs each) for superior visibility at extreme distances. CE EN 12.352 L8H certified with intelligent 5-level automatic brightness adjustment.

Constructed with durable aluminum/steel frame and weighing 36 kg (including frame and motor). Operates on 12V with 3.5A average consumption via RS485 canbus system with backlit control panel. Features simple 4-wire installation and compatibility with additional lighting accessories. Includes standard push-button remote with cable.

Talk to an expert Brochure
LP15_Cut Kopie
LP15 80 HS Slim Line 2024
LP15 außen
LP 15 Pfeil rechts
Fjernbetjening_3x5_1
LP15_Cut Kopie LP15 80 HS Slim Line 2024 LP15 außen LP 15 Pfeil rechts Fjernbetjening_3x5_1
LP15_Cut Kopie

SKU: 2151112323

Light cross system with advanced Raise/Lower Mechanism

Technical Specifications:
  • Weight: 36 kg (including frame system and motor)
  • Number of lamps: 15 pcs. Ø200 mm
  • LEDs per lamp: 30 pcs.
  • Material: Aluminum
  • Panel dimensions: 1060 x 1060 x 35 mm
  • Light class: CE EN 12.352 L8H tested and approved
  • Power: 12V
  • Average consumption: 3.5A
  • Control system: RS485 canbus
  • Control unit: Backlit control panel with control functions
  • Photo sensor: Automatic light reduction in min. 5 levels relative to ambient light (meets Road Directorate requirements)

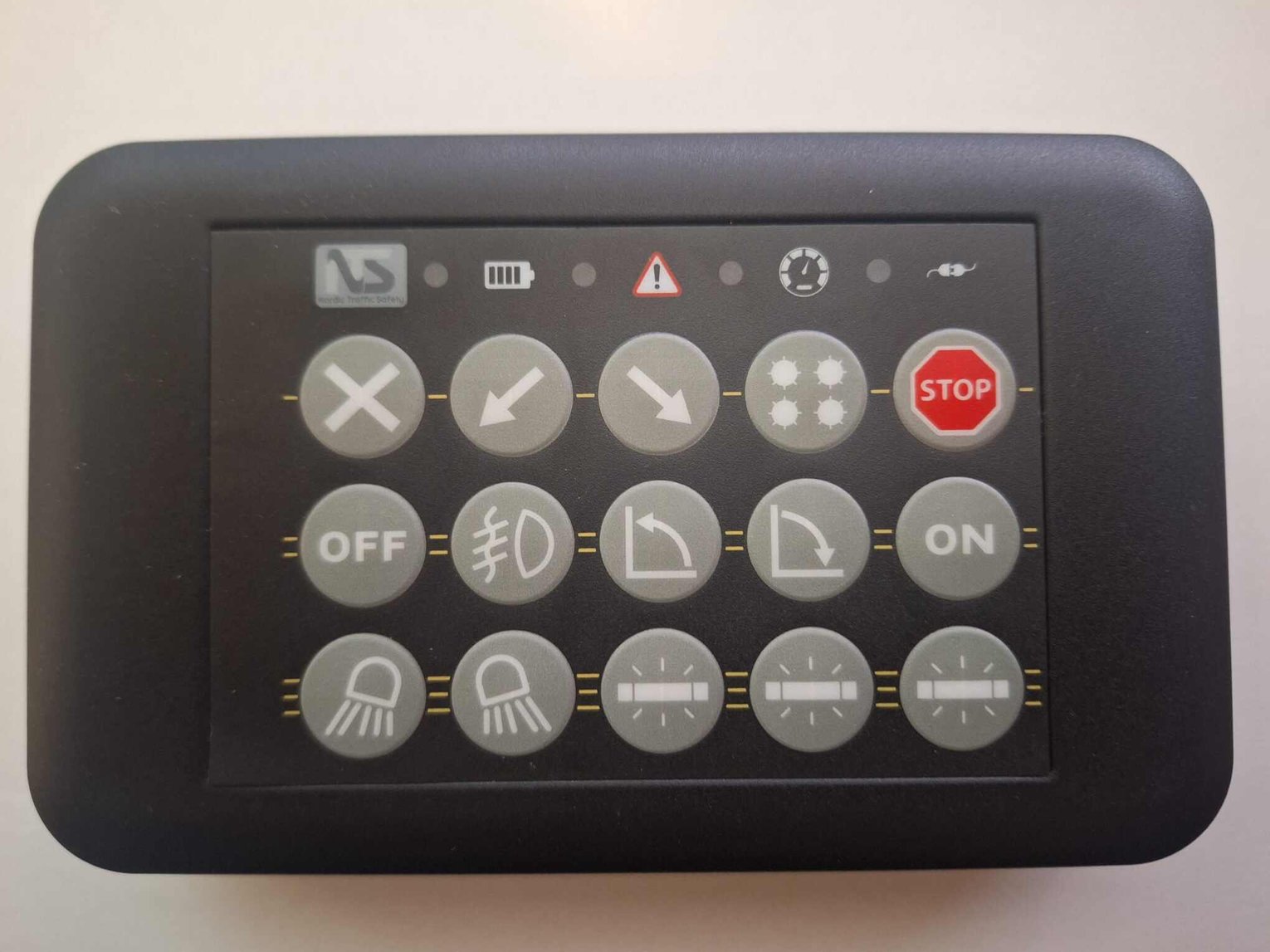

  • Operation: Push button with cable (standard)
  • Features: Lift/lower mechanism with low wind resistance, compatible with light bars and external flashers
  • Installation: 4-wire cable connection to cabin (+ / - and 2 control wires)
