LP15 for surface mounting
Slim-Line LP 15-106 PM

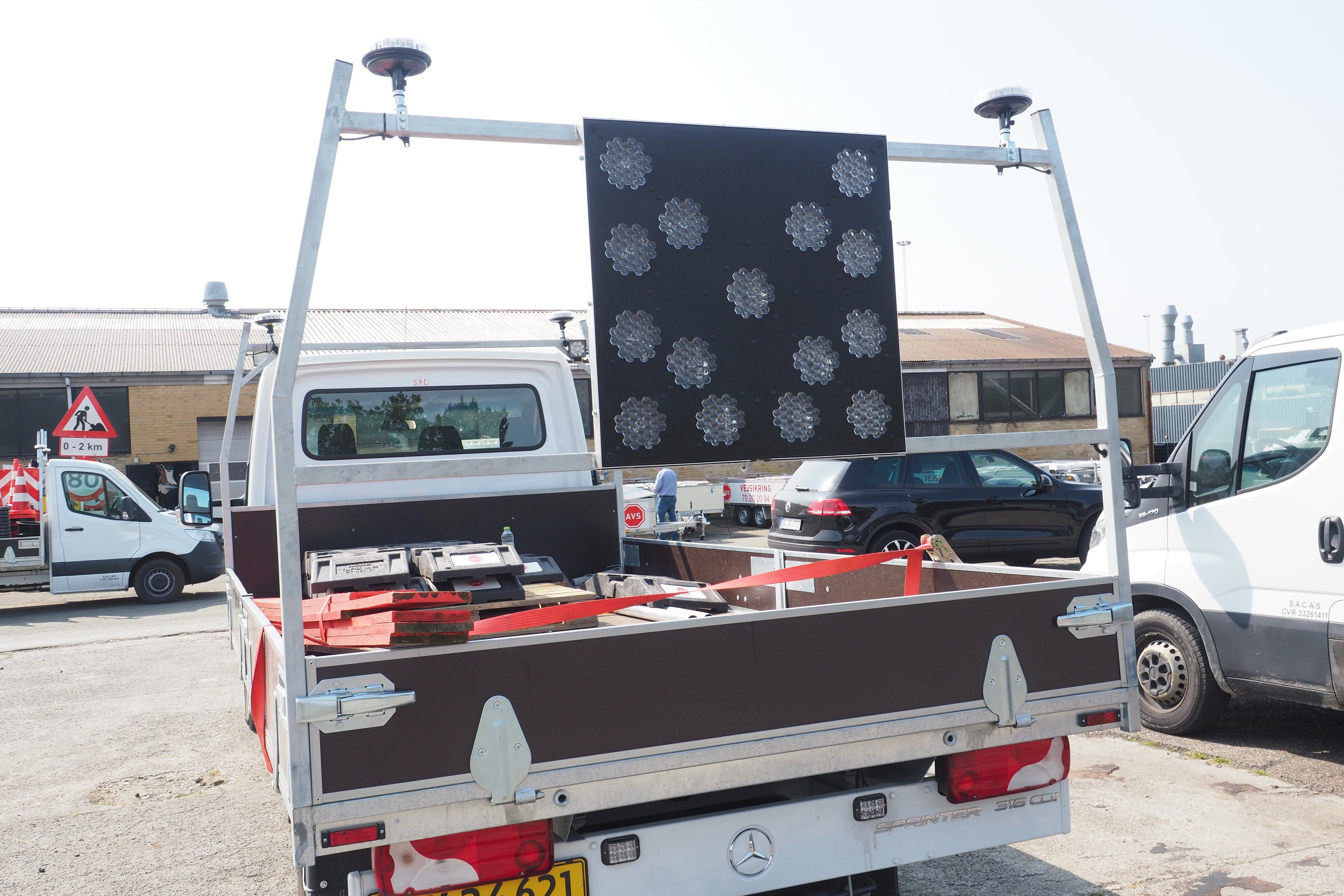

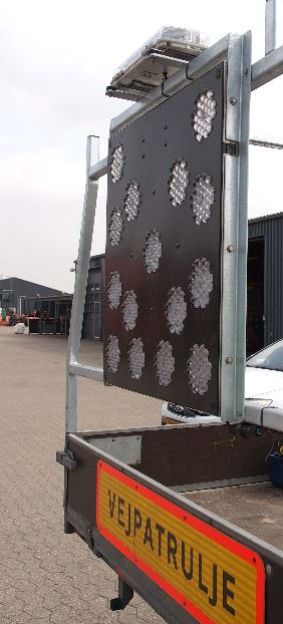

Traffic light system for surface mounting on vehicles (crossings and corner flashers only). Extremely flat aluminum panel with black backplate and 15 LED lamps, visible from a very long distance. Possibility to mount and connect light bars and external flashers directly to the frame system. Easy to install, only 4-wire cable into the cabin (+ / - and 2 control wires).
The 1060 x 1060 x 32 mm aluminum panel features 15 high-visibility LED lamps (Ø200 mm, 60 LEDs each) for exceptional visibility at extreme distances. CE EN12.352 L8H tested and approved with intelligent light adjustment via photosensor meeting Road Directorate requirements for automatic reduction in minimum 5 levels relative to external light.
Operates on 12V with 3.5A power consumption and RS485 canbus control system with backlit control panel. Weighs just 20 kg. Includes standard push-button remote control with cable.
SKU: 2151012023
Slim-Line LP 15-106 PM
Technical Specifications:
- Model: Slim-Line LP 15-106 PM PBKLK
- Weight: 20 kg
- Number of lamps: 15 pcs. Ø200 mm
- LEDs per lamp: 60 pcs.
- Material: Aluminum
- Panel dimensions: 1060 x 1060 x 32 mm
- Light class: CE EN12.352 L8H tested and approved
- Power: 12 V
- Power consumption: 3.5 A
- Control: RS485 canbus system

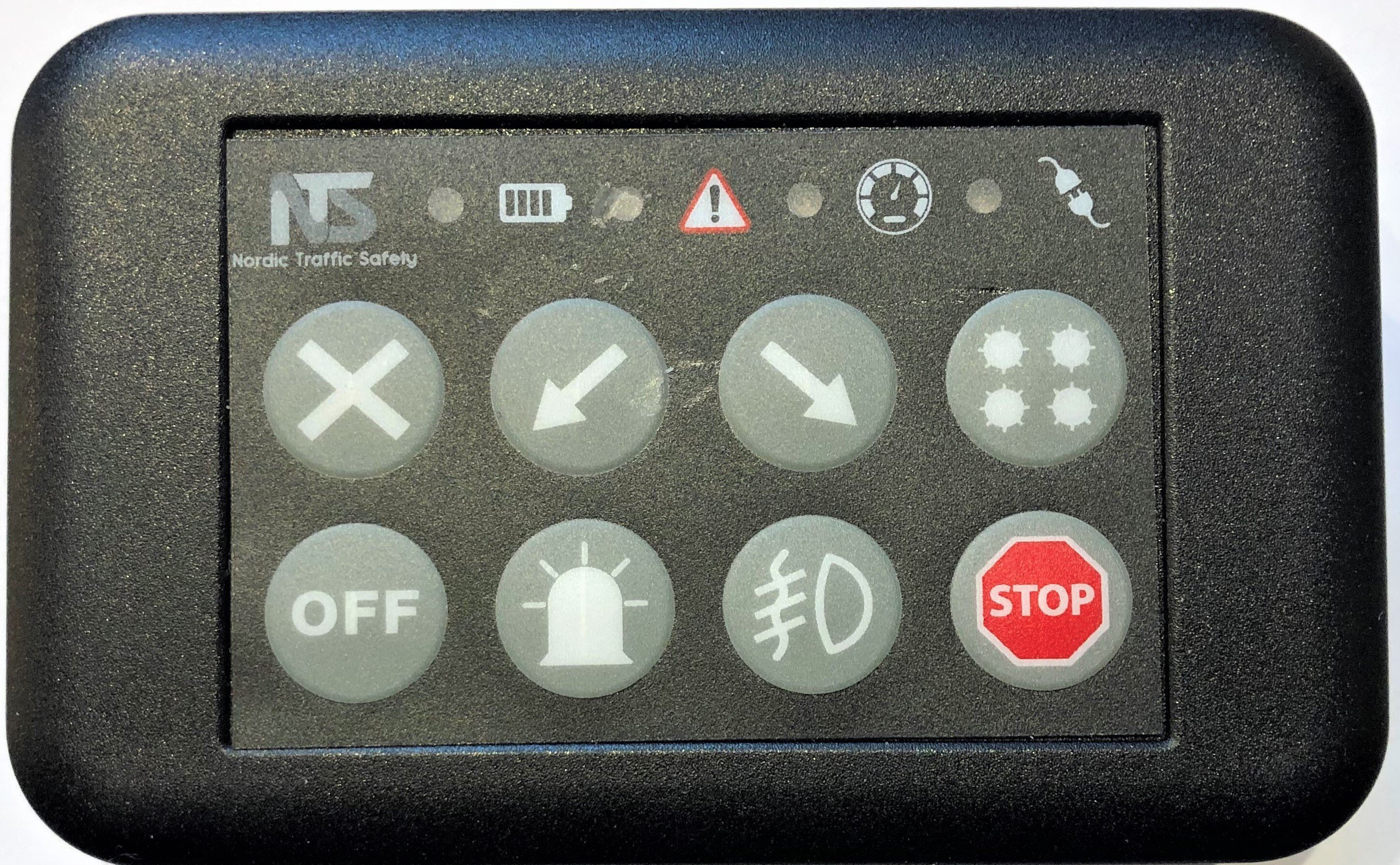

- Control unit: Backlit control panel with control functions
- Photo sensor: Meets Road Directorate requirements for automatic light reduction in min. 5 levels relative to external light
- Remote control: Standard push button with cable
