LP15-80 HHS Arrow Light System with Raise/Lower Mechanism

Slim-Line LP 15-80 HHS PBK Arrow Light System

Slim-Line LP 15-80 HHS PBK Arrow Light System

Advanced arrow light system featuring a raise/lower mechanism with low wind resistance. The slim 800 x 800 x 32 mm aluminum panel houses 15 high-visibility LED lamps (Ø140 mm, 30 LEDs each) for exceptional long-distance visibility. CE EN 12.352 L2H certified with intelligent 5-level automatic light adjustment.

Built with heavy-duty aluminum/steel frame and weighing just 31 kg (including frame and motor). Operates on 12V with 3.5A consumption using an RS485 canbus system with backlit controls. Features easy 4-wire installation and compatibility with additional lighting accessories. Includes standard push-button remote with cable.

Get in touch

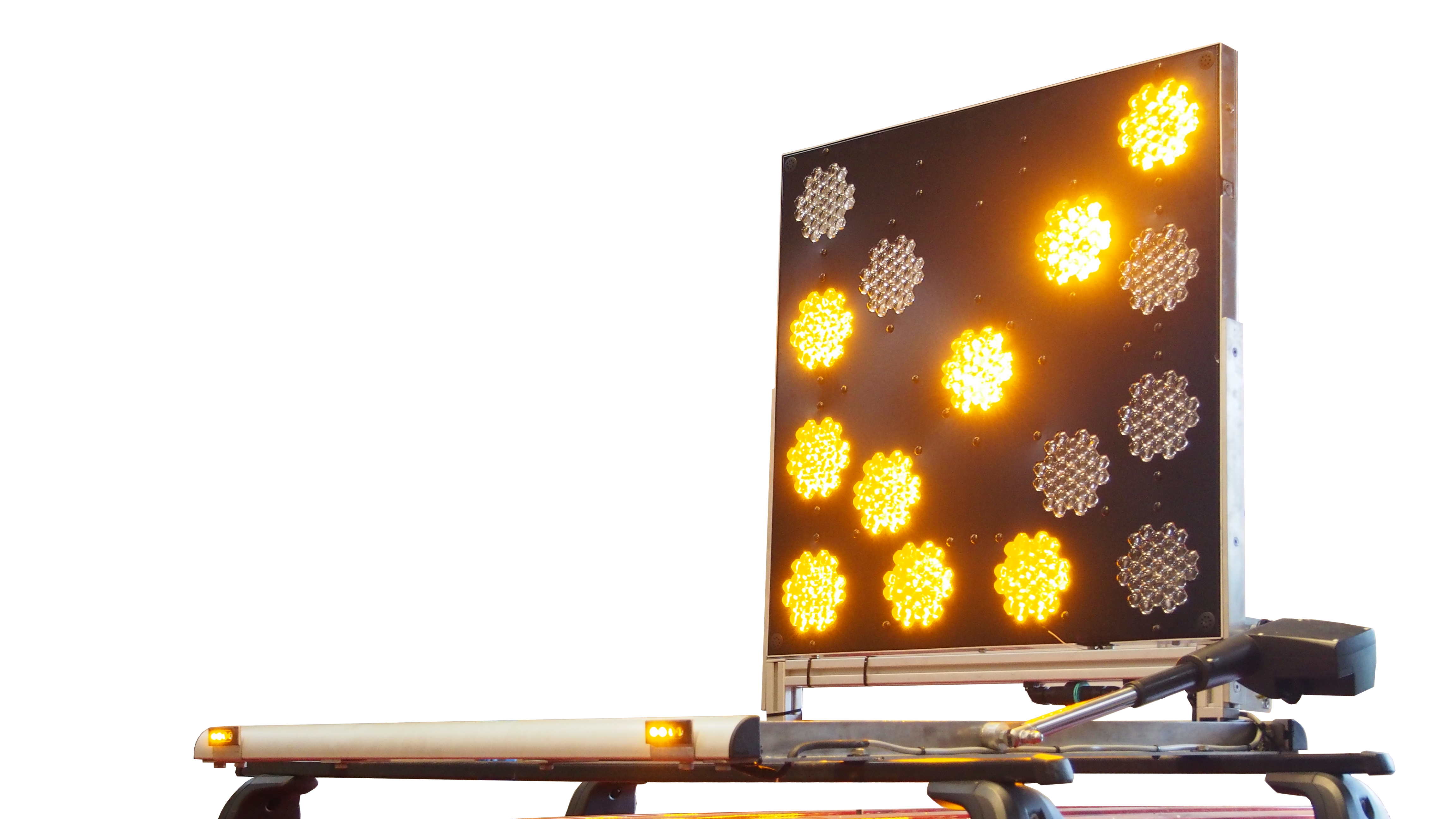

LP15_Cut Kopie

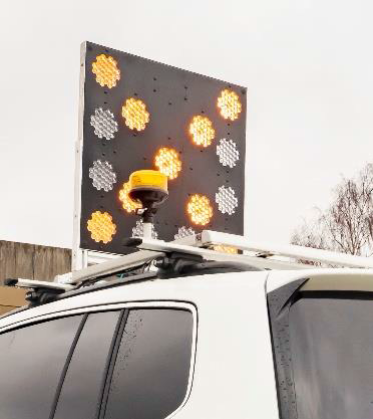

LP15 80 HS Slim Line 2024

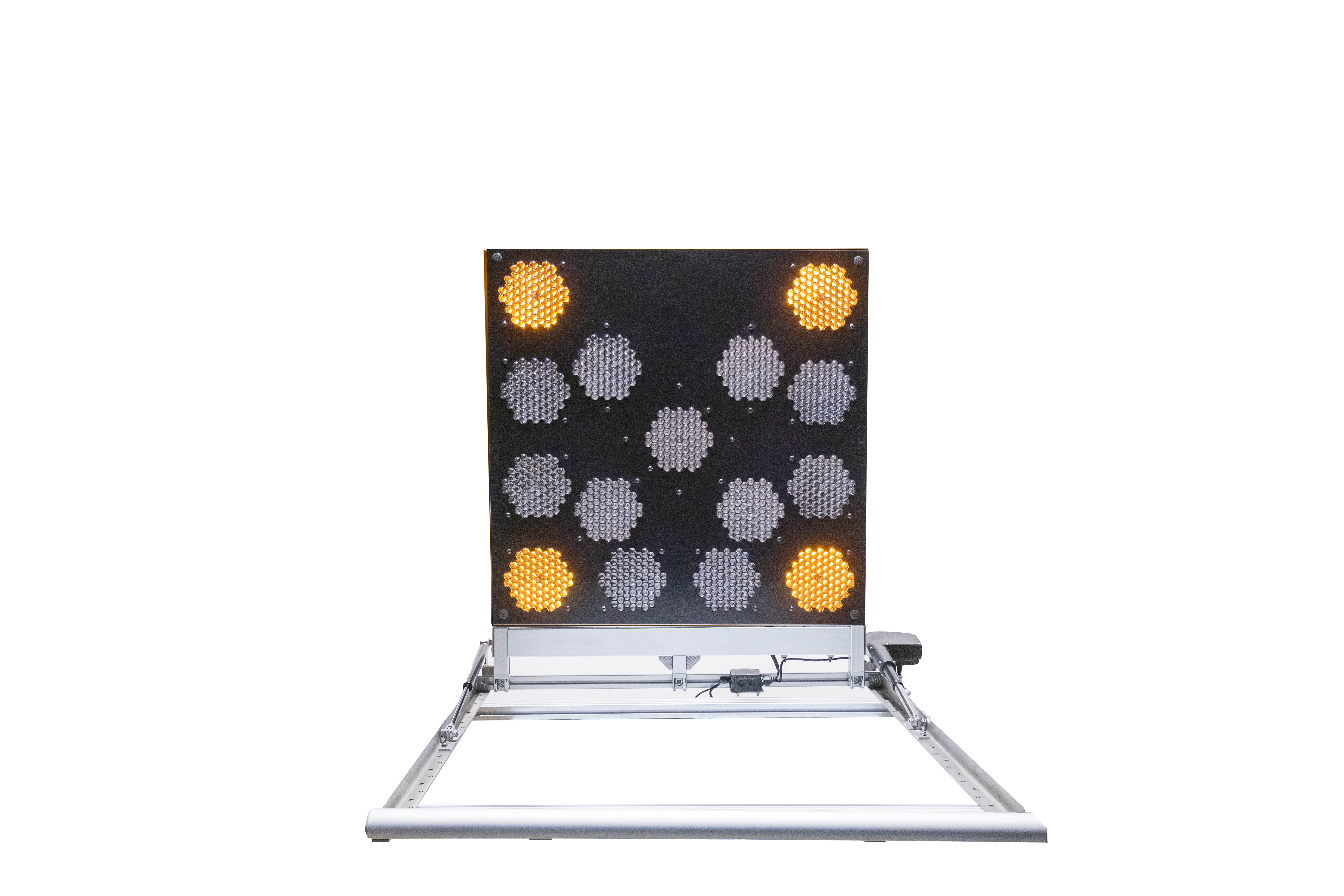

LP15 außen
LP 15 Pfeil rechts
Fjernbetjening_3x5_1
LP15_Cut Kopie LP15 80 HS Slim Line 2024 LP15 außen LP 15 Pfeil rechts Fjernbetjening_3x5_1
LP15_Cut Kopie

SKU: 2151111313

Light cross system with advanced Raise/Lower Mechanism

Technical Specifications:
  • Weight: 31 kg (including frame system and motor)
  • Number of lamps: 15 pcs. Ø140 mm
  • LEDs per lamp: 30 pcs.
  • Material: Aluminum
  • Panel dimensions: 800 x 800 x 32 mm
  • Light class: CE EN 12.352 L2H tested and approved
  • Power: 12V
  • Power consumption: 3.5A
  • Control system: RS485 canbus
  • Control unit: Backlit control panel with control functions
  • Photo sensor: Automatic light reduction in min. 5 levels relative to ambient light (meets Road Directorate requirements)
  • Operation: Push button with cable (standard)
  • Features: Raise/lower mechanism with low wind resistance, compatible with light bars and external flashers
  • Installation: 4-wire cable connection to cabin (+ / - and 2 control wires)
