LP15 for surface mounting
Slim-Line LP 15-80 PM
Slim-Line LP 15-80 PM Light System

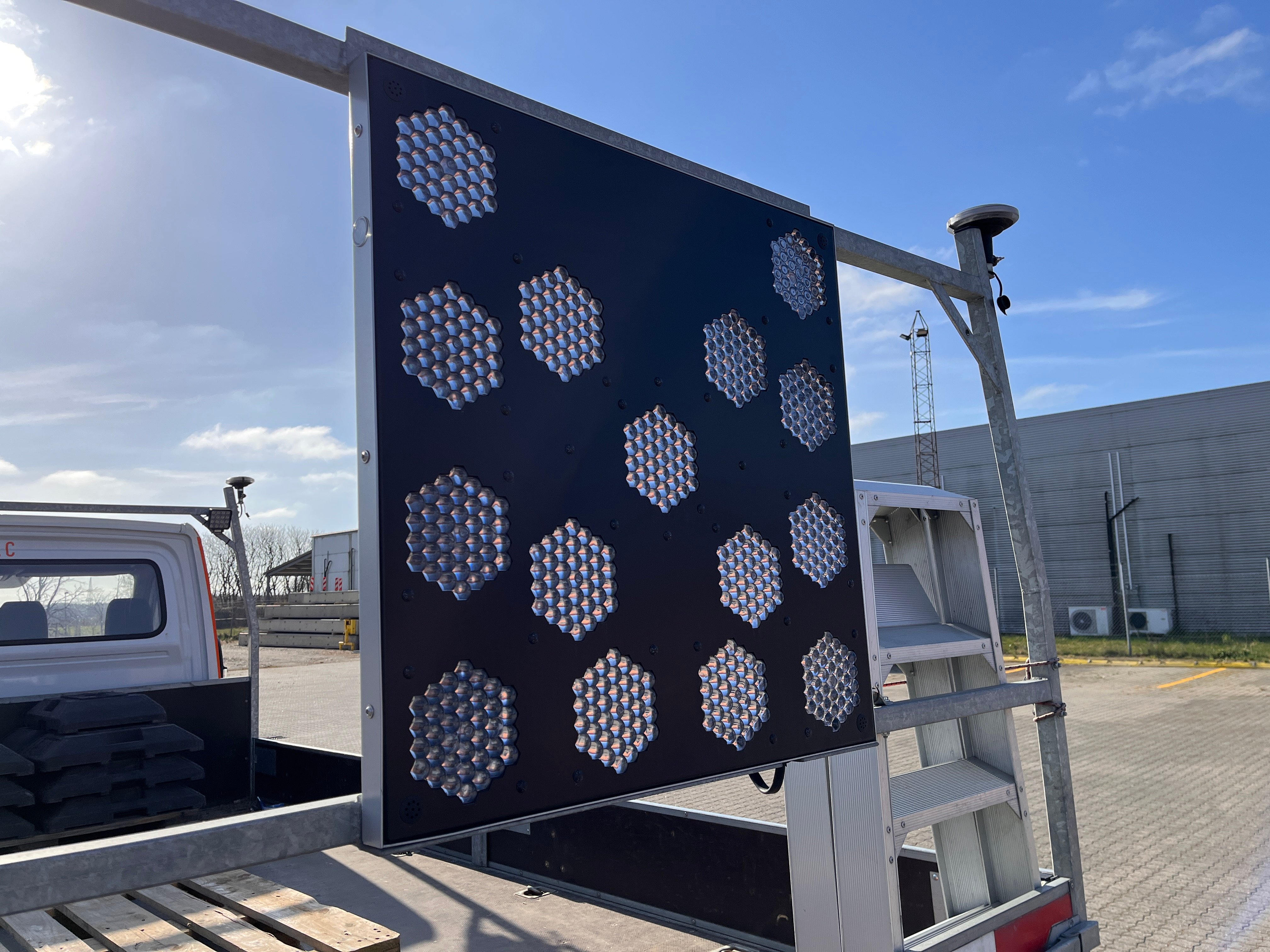

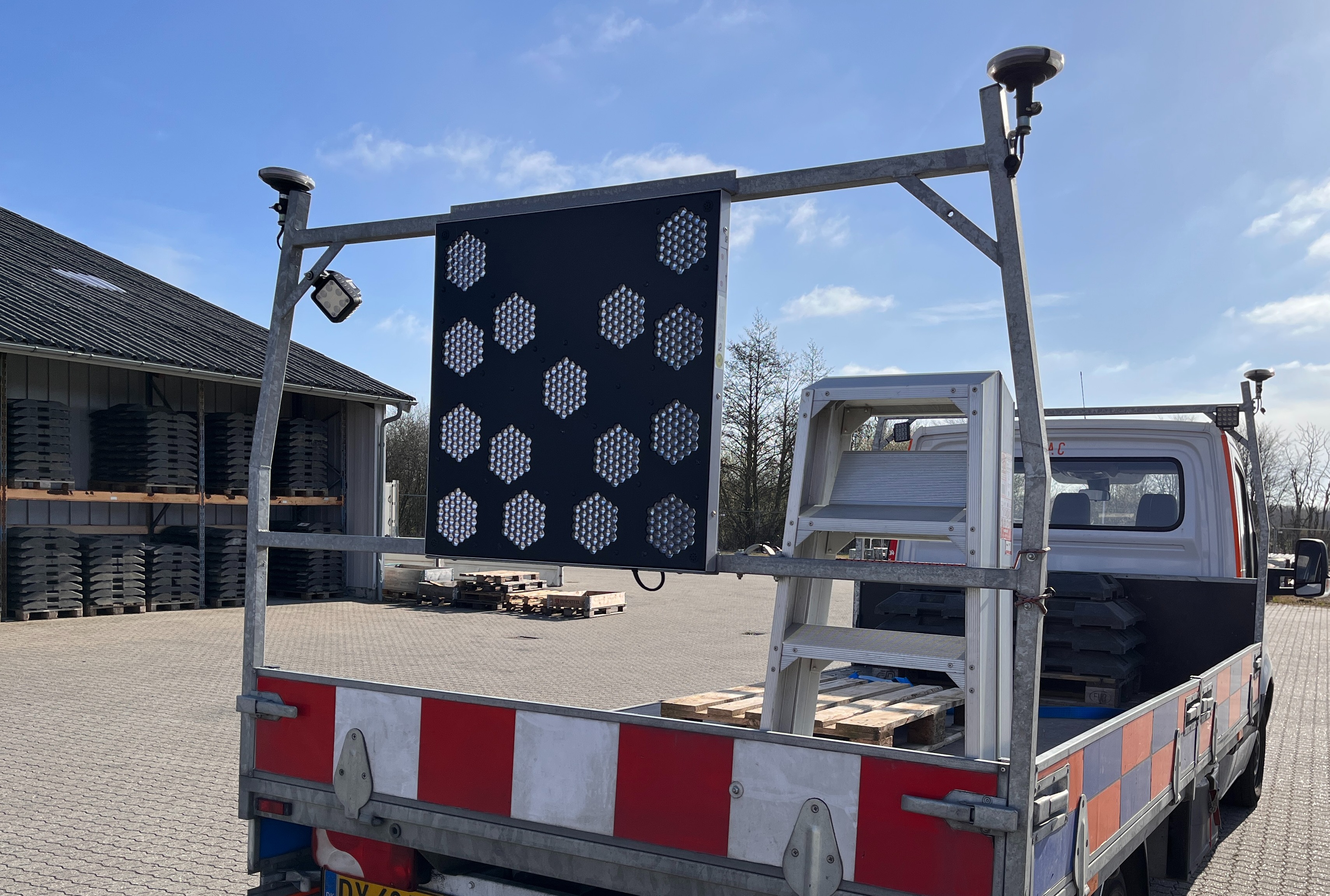

Advanced traffic light system for surface mounting on vehicles, specifically designed for crossings and corner flashers. The 800 x 800 x 32 mm extremely flat aluminum panel with black backplate features 15 high-visibility LED lamps (Ø140 mm, 30 LEDs each) visible from very long distances. CE EN12.352 L2H tested and approved with intelligent 5-level light adjustment via photosensor meeting Road Directorate requirements.
Versatile system allowing direct mounting and connection of light bars and external flashers to the frame system. Operates on 12V with 3.5A power consumption and RS485 canbus control system with backlit control panel. Weighs just 20 kg. Installation requires only a 4-wire cabin connection (+ / - and 2 control wires). Includes standard push-button remote control with cable.
SKU: 2151011013
Slim-Line LP 15-80 PM
Technical Specifications:
- Model: Slim-Line LP 15-80 PM PBKLK
- Weight: 20 kg
- Number of lamps: 15 pcs. Ø140 mm
- LEDs per lamp: 30 pcs.
- Material: Aluminum
- Panel dimensions: 800 x 800 x 32 mm
- Light class: CE EN12.352 L2H tested and approved
- Power: 12 V
- Power consumption: 3.5 A
- Control: RS485 canbus system

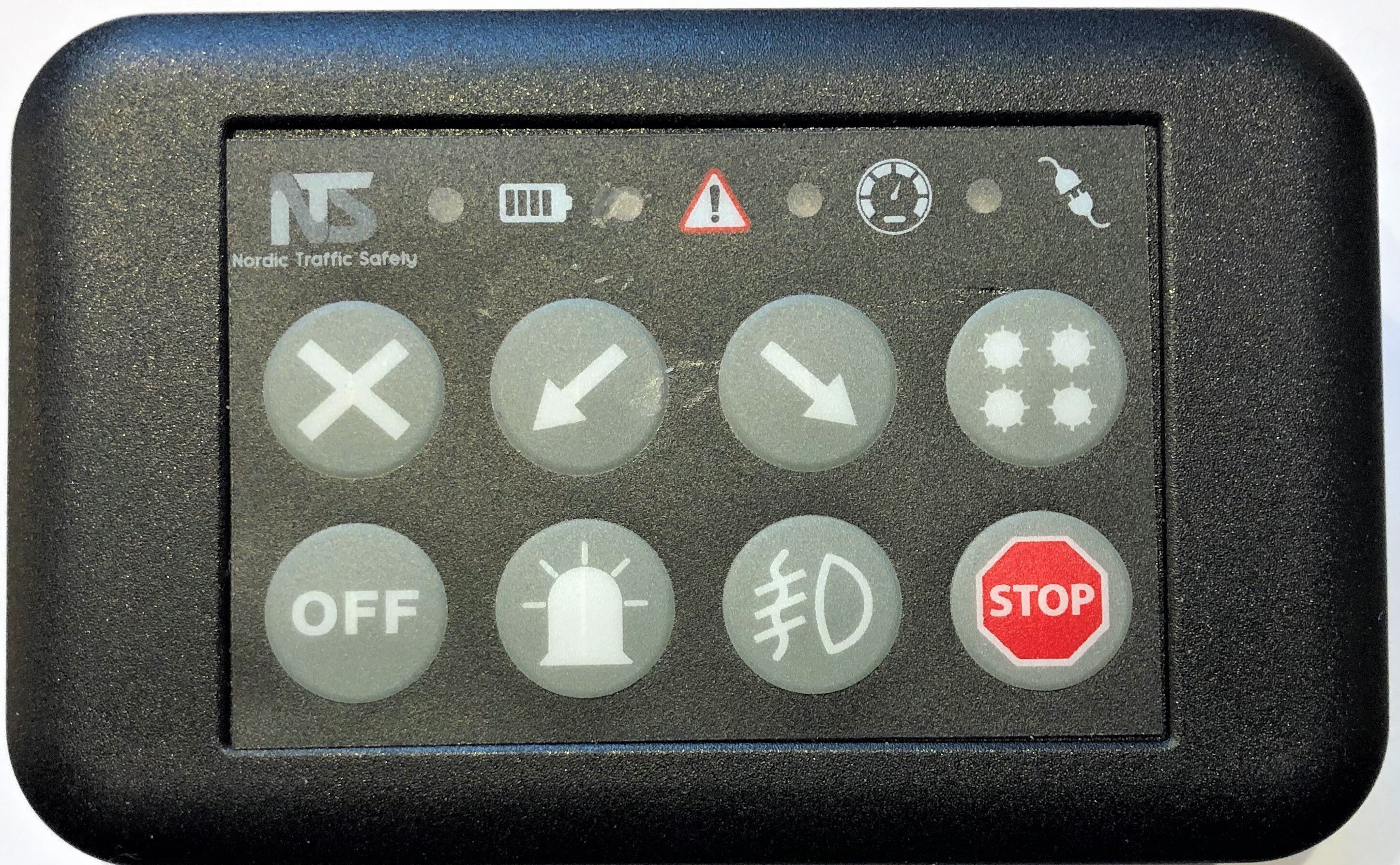

- Control unit: Backlit control panel with control functions
- Photo sensor: Meets Road Directorate requirements for automatic light reduction in min. 5 levels relative to external light
- Remote control: Standard push button with cable
